***Now featuring our Smooth Bore PTFE fuel lines***

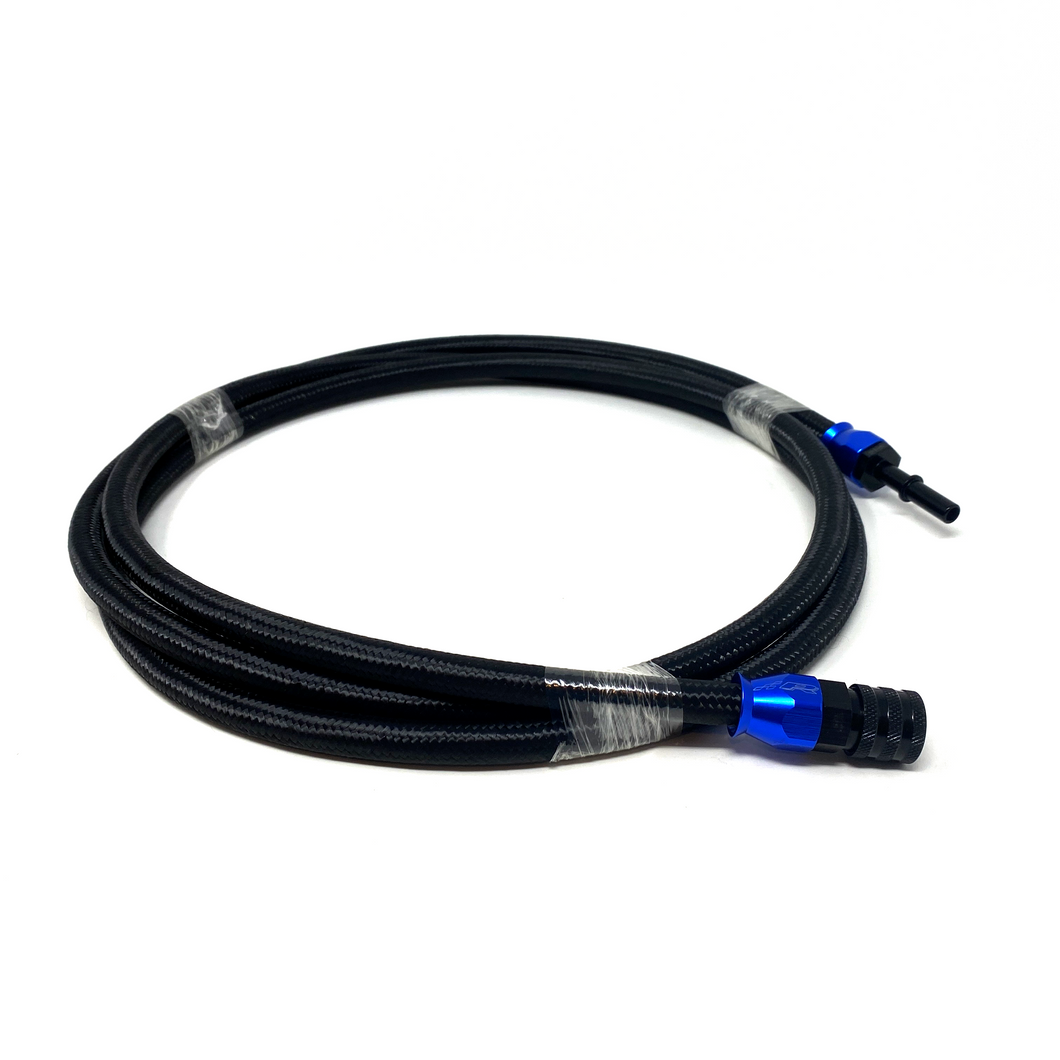

The Precision Raceworks AN6 Fuel line upgrade is a direct replacement from the fuel filter on the driver’s side of the car to the high pressure fuel pump.
All connections are designed in house and machined from 6061 aluminum then anodized for 100% E85 compliance. All female connectors have 2 seals (a primary and secondary seal) to guarantee no possible fuel leaks. The fuel line used by Precision Raceworks is Aeroquip AN6 Socketless hose used in high end E85 applications built all over the world.
This is an OEM quality solution is direct plug and play replacement for the factory line to help you achieve the needs of your high horsepower build on E85.
Looking to add Ethanol Content Analyzer?
Select the option above to add pre-assembled connections to fit Continental Flex Fuel Sensor. Hose length will place the sensor below drivers feet area under car.
Or if you already have push lock style hose on your car you can purchase our fittings here and cut and install them into the hose yourself!
For more details see the specifications tab
Specifications
-
E9x/E8x AN6 Fuel Line(s) Without Flex Fuel Sensor Connection
-
Weight: 1.2lbs
-
Fuel hose type: PTFE Smooth Bore
-
Line Size: -6AN (1/2")
-
Connection Style: OEM Quick Connect
-
Connector Material: 6061 Aircraft Grade Aluminum
-
Connects to flex fuel sensor: No (fittings available separate here)
-
E9x/E8x AN6 Fuel Line(s) With Flex Fuel Sensor Connection
-
Weight:
-
Fuel hose type: PTFE Smooth Bore
-
Line Size: -6AN (1/2")
-
Connection Style: OEM Quick Connect
-
Connector Material: 6061 Aircraft Grade Aluminum
-
Connects to flex fuel sensor: Yes
